biemmedue WET 560 BA ride-on scrubber dryer side profile

BM2 BIEMMEDUE

WET 560 BA Ride On Scrubber Dryer

Model: 110L111

Ride On Scrubber Dryer

Completely mechanical ride-on scrubber dryer featuring dual disc brushes, front-wheel drive, and user-friendly controls for highly stable commercial floor cleaning.

Key Specifications

Efficiency

3000 m2/h

Power Lift

1590 mm H2O

Brush Motor

2 x 200 W

Brush Speed

190 rpm

Model-specific quotation
Confirm delivery terms
Parts compatibility enquiry

Product description

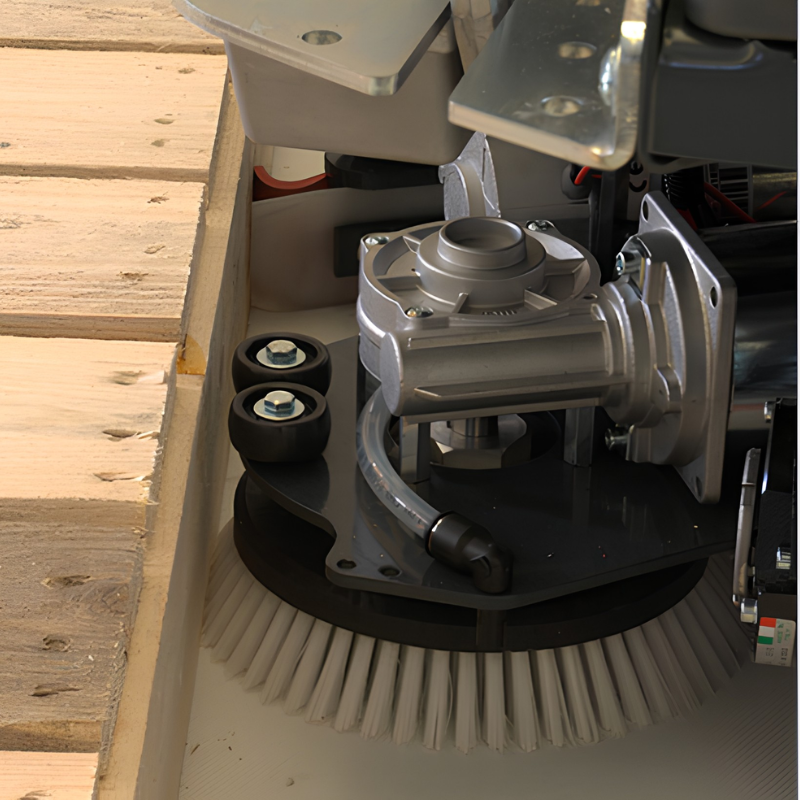

  • Ride-on scrubber dryer featuring 1 body with two scrubber groups and 2 disk-brushes.

  • Completely mechanical design with user-friendly controls offering easy access.

  • Equipped with an electric brake featuring a mechanical release.

  • Features mechanical lifting of the scrubber group.

  • Includes an ergonomic and adjustable seat that provides maximum visibility backward and over the scrubber group.

  • Built with non-marking wheels of equal diameter for extreme stability and the ability to get over obstacles.

  • Front-wheel drive ensures the machine doesn’t slip on wet floors and keeps its direction.

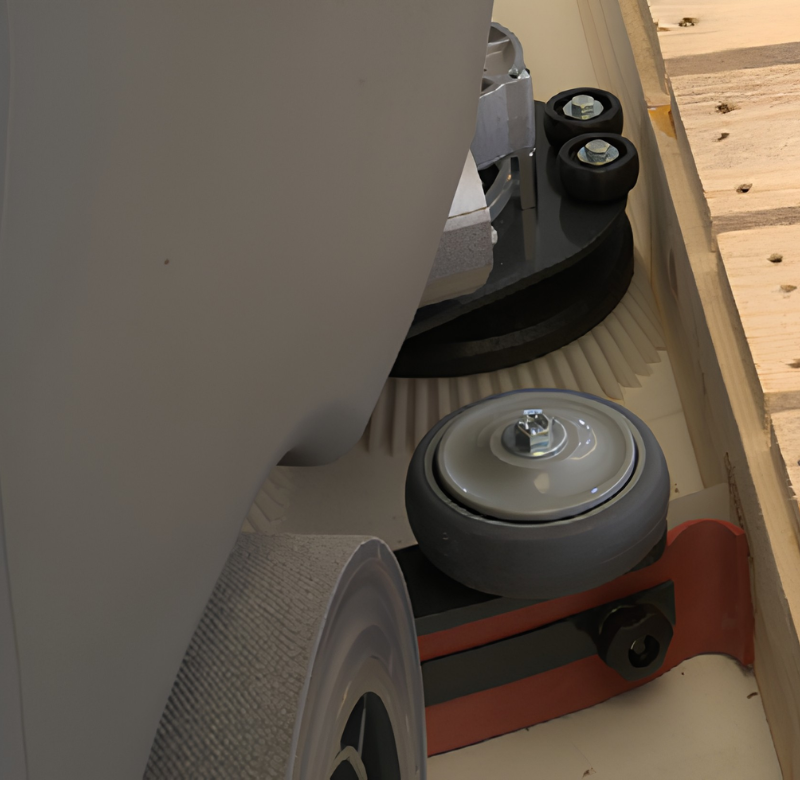

  • Features an advanced scrubber group designed to clean wall borders.

  • Water (H2O) comes only with the drive of the brush and the consequent movement of the machine.

  • Equipped with a parabolic squeegee behind the brushes, featuring a stabilizer rear wheel.

  • The squeegee is reactive to adapt easily to machine movement and includes big bumper wheels to reduce the risk of crashing on obstacles.

  • Includes a protective thermal switch for each motor.

  • Designed for fast and easy access to parts and components for after-sales assistance, including quick connectors for water circuit pipes.

  • Tanks are made of high-density polypropylene bolted on a steel frame, with H2O protection to prevent splashes from overloaded tanks.

  • Features a noiseless vacuum motor situated inside the clean water tank.

  • Includes a document holder.

  • Note: Battery and battery charger are not included.

Technical specifications

Efficiency3000 m2/h
Power Lift1590 mm H2O
Brush Motor2 x 200 W
Brush Speed190 rpm
Total Power1380 W
Power Supply24 V
Product Code110L111
Vacuum Motor3 stages 530 W
Working Time> 3 h
Brush Pressure20 Kg
Scrubbing Path550 mm
Squeegee Width650 mm
Traction Motor450 W (front)
Batteries (Required)2/12/140 GEL (Not included)
Recovery Tank Capacity80 lt
Solution Tank Capacity75 lt
Brush Quantity & Diameter2 x 290 mm
